RTX84

Specifications

High efficiency midrange woofer • Diameter : 20cm (8“)

Max Power : 600W

RMS Power : 150W

Sensitivity : 97,7dB/2,83v/1m

Impedance : 4Ω

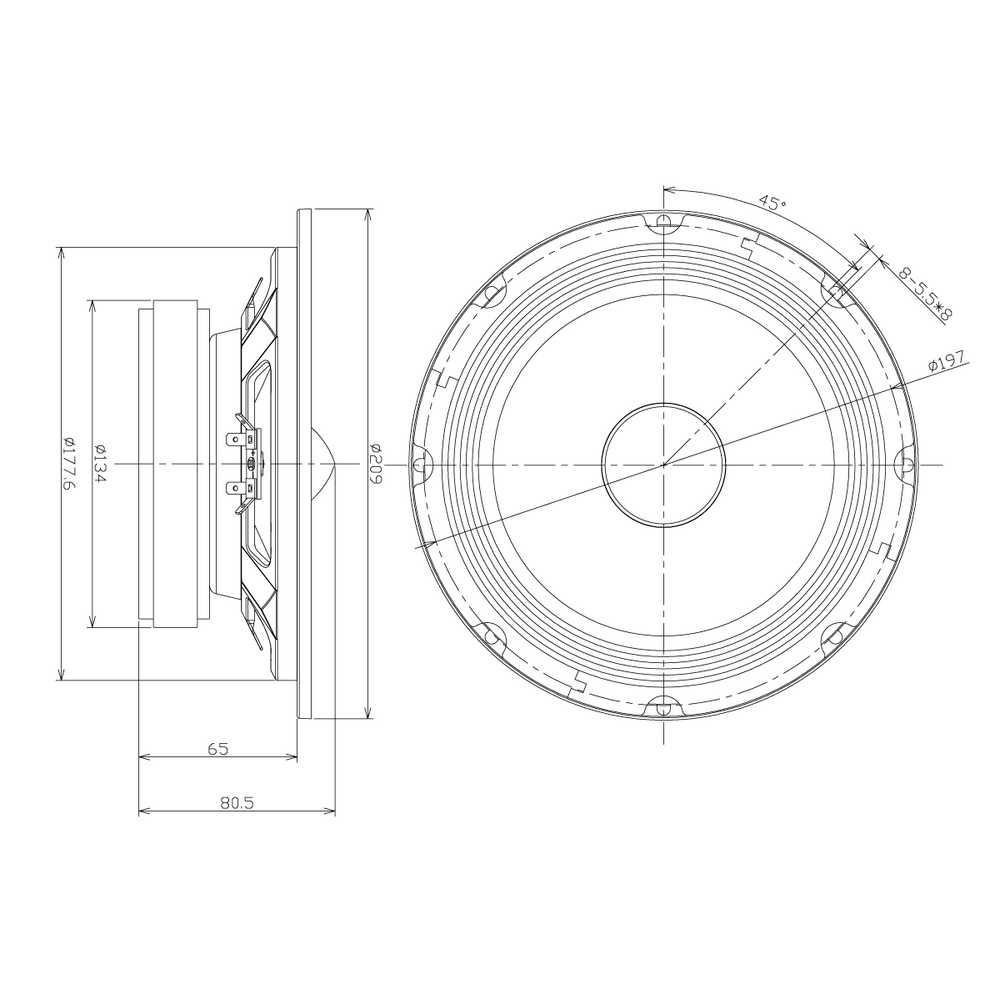

Freq. response : 100Hz - 5000Hz • Mounting Depth : 65mm

Recommended x-over : >100Hz • Fs : 98,8Hz

Parameters

Re : 3,10Ω

Le : 0,092mH

L2 : 0,488mH

R2 : 2,39Ω

Cmes : 403,97μF

Res : 43,18Ω

Fs : 98,8Hz

Mms : 20,495g

Mmd : 16,962g

Rms : 01,175Kg/s

Cms : 0,127mm/N

Kms : 7,89N/mm

Bl : 7,123N/A

Qms : 10,823

Qes : 0,777

Qts : 0,725

Vas : 8,1998 liters

Sd : 213,82cm2

Lnom : 97,7/2,83V/1m

Features

Exceptionnal sound quality with an incredible sence of music...

51mm giant KSV voice coil for more power handling

134mm extra large strontium magnet for a better cone control and more power handling

Compressed paper cone for more efficiency, softness and high quality sound

Treated Cloth edge suspension for a better efficiency

Highly detailed midrange Good bass response

Easy to install - Fits into the origianl 8“ 20cm cut outs (Ø178mm)

Sold by piece - You need two RTX84 for a stereo system

Design to work fine with MTX RTX2BTs or RTX4BTs tweeters
