GZIF 69

SKU: IRIDIUM 6X9

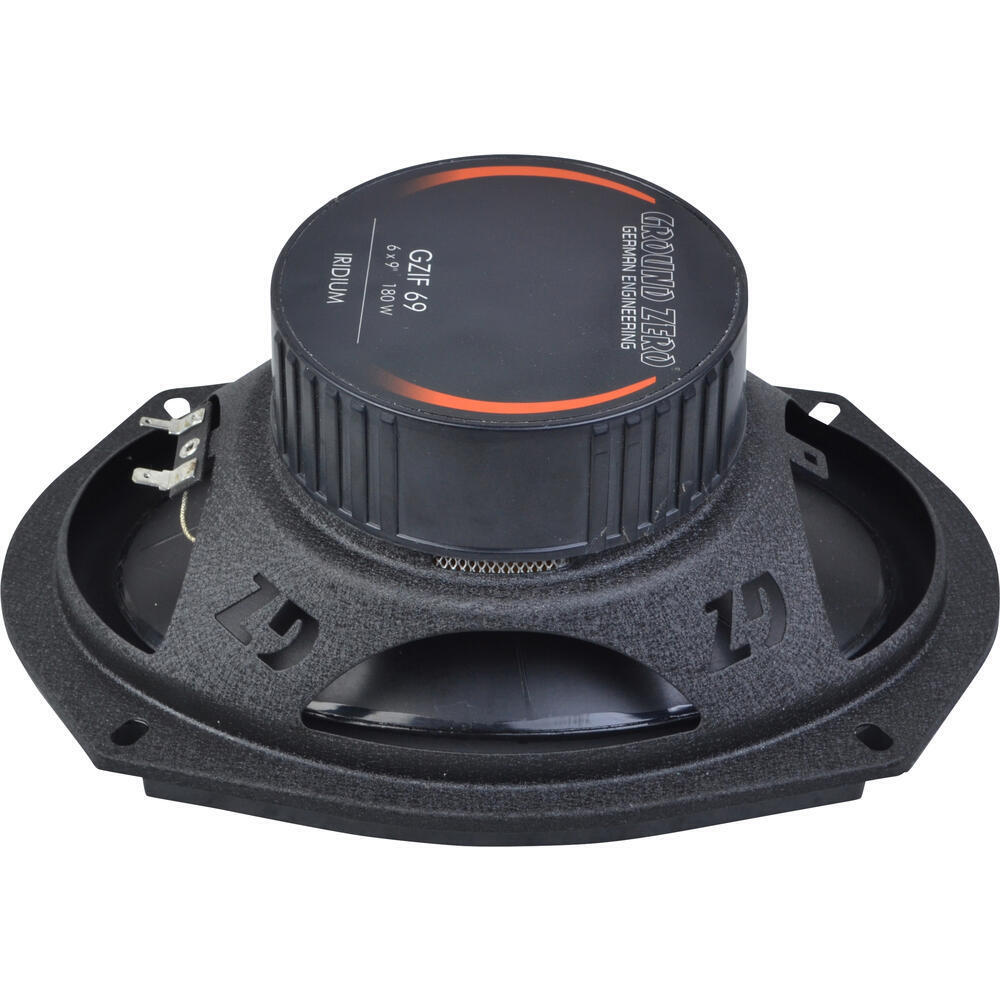

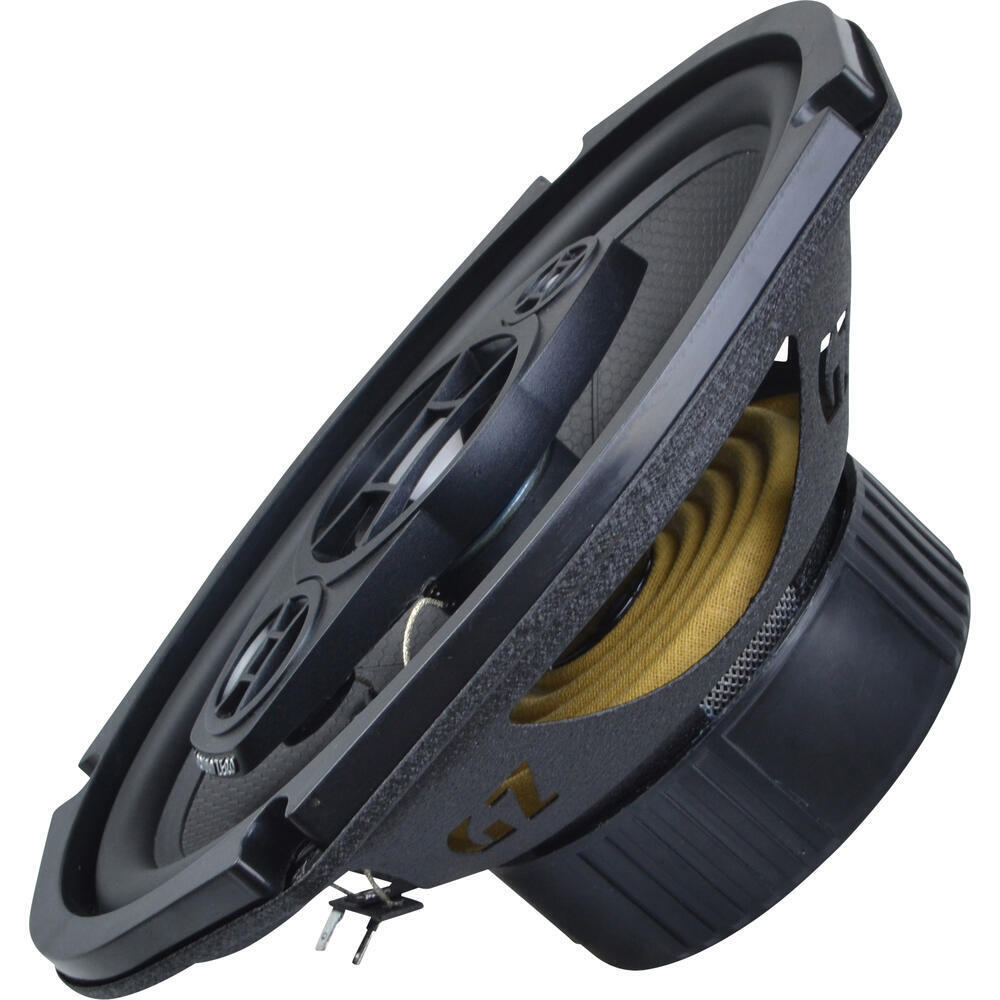

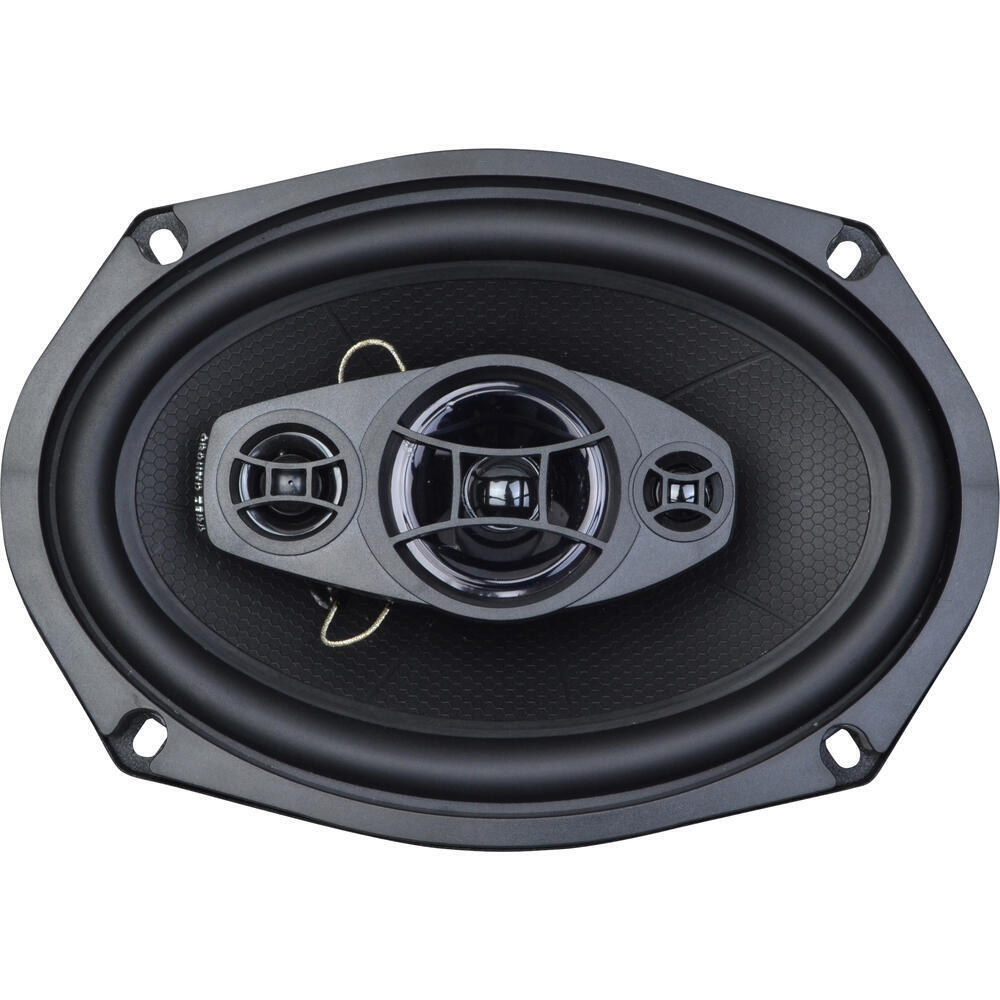

High quality 4 Way 150 x 230 mm / 6''x9'' coaxial speaker with HQPP-Cone

100,00 €

High quality 4 Way 120 x 180 mm / 6''x9''coaxial speaker with HQPP-Cone

Resonance free steel basket - Rubber surround - 0.51” Mylar-tweeter with overload protection

Mounting diameter of midwoofer or midrange 150 x 223 mm / 6''x8.88''

Mounting depth of midwoofer or midrange 83 mm / 3.27"

Voice coil of midwoofer or midrange 25 mm / 1" Cone of midwoofer or midrange HQPP Dustcap

Voice coil of tweeter 55 mm / 2.17'' & 2 x18 mm / 0.71''

Cone of tweeter Mylar Housing of tweeter Plastic injection Magnet of tweeter Ferrit and Piezoelectric

Power handling WRMS 120 W Power handling W peak 180 W

Impedance 4 Ohm SPL 92 dB Frequency response 40 HZ - 20 kHz
